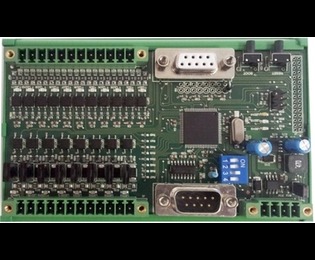

NG Quark is used in low performance machines.I It manages up to 3 Axes in PULSE/DIR with interpolation Linear, Circular, Helical. NG Quark is connected to ISONS byRS232 HIGH Speed.

Information:-

• Interpolation up to 3 AXES PULSE/DIR 30 Khz Clock
• 1 Axis PULSE/DIR positioned 125 Khz clock
• 4 Axes CanOpen positioned
• Interpolation Linear, Circular, Helical
• Management Tool change
• Management Spindle 0-10V or Modbus
• PLC Cycle
• Movements buffer up to 16 block
• Minimum sample 4 mSec
• Tangential and Gantry axis
• Calculation of edge threshold in 3 dimension

Features:-

• 1 - CanOpen Master
• 11 - Digital Inputs PNP 24 Vdc
• 8 - Digital Outputs PNP 24 Vdc 1,2 A
• 1 - Analog Input
• 2 - Analog Outputs +/- 10V
• 3/4 - Axes Pulse/Dir line drive or Open Collector
• Small footprint
