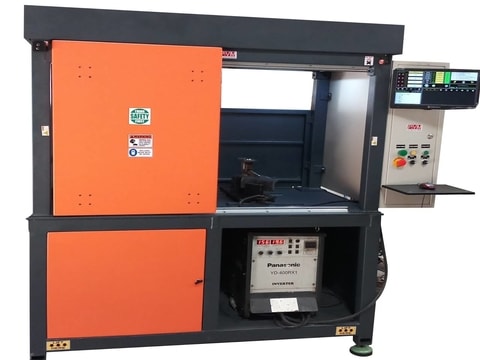

Robo Weld 4.0

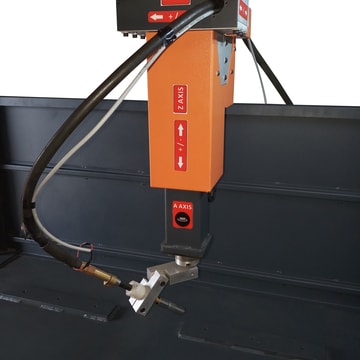

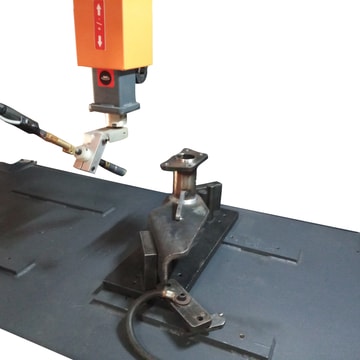

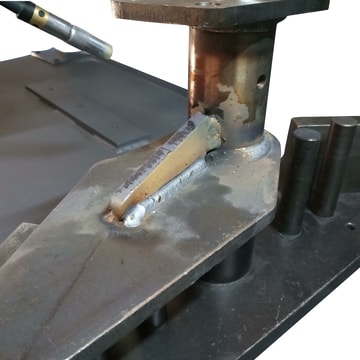

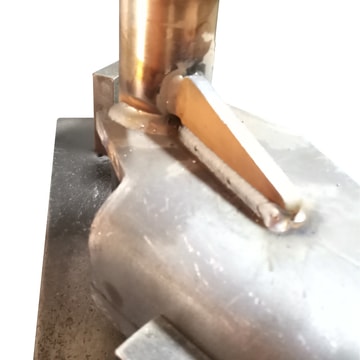

The Machine is designed to deliver a quality weld by programming the sequence to the suitable job requirements. The Machine consists of 4 axes in which all the axes can be interpolated to perform a trajectory motion path to perform a smooth weld in critical areas. The Axes can perform Linear, Helical and Circular Interpolation simultaneously. The Machine runs on CNC G Code programming language which is most convenient and easy method used in the industries.

Technical Specifications

X-Axis Travel Length 800 mm
Y-Axis Travel Length 350 mm
Z-Axis Travel Length 150 mm
A-Axis Rotation 0-360 Degree
Welding Speed 0-100 mm/sec
Welding Thickness 0.5-25 mm
Equipment size 1860mm(L)X910mm(W)X1980mm(H)
Machine Use The Machine is capable to accommodate MIG/MAG , TIG and Plasma Welding Machines
